Upgrade Your Garage Door Opener With a WeMo Maker

Reading Time: 7 minutes

WeMo MakerHow’d you like to ditch your garage door remote control and move that functionality to your mobile phone? If you’re thinking to yourself “sounds cool, but way beyond my technical abilities,” then I’m going to tell you that you’re wrong. If you’ve got 15-20 minutes  and can use a screwdriver, you can do this. (It’ll probably take you less than 15 minutes, but take your time… there’s no rush.)

NOTE: Read through this entire post before getting started, so you’ll know everything you need to buy, measure, and connect.

The basic steps you’ll take (and I go into more detail below) are:

  1. Configure WeMo Maker to join your home WiFI network.
  2. Move WeMo Maker to a garage power outlet.
  3. Connect ends of two wires to garage door push button.
  4. Connect other ends of two wires to WeMo Maker RELAY ports.
  5. Test the WeMo app to open/close garage door.

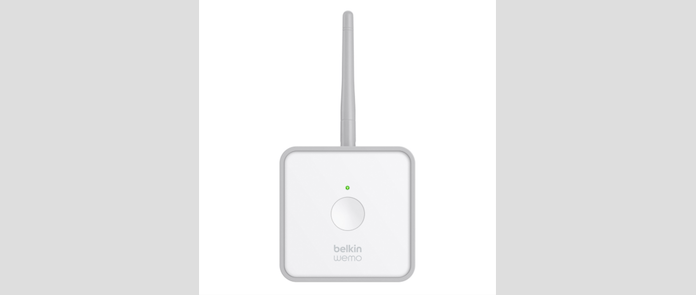

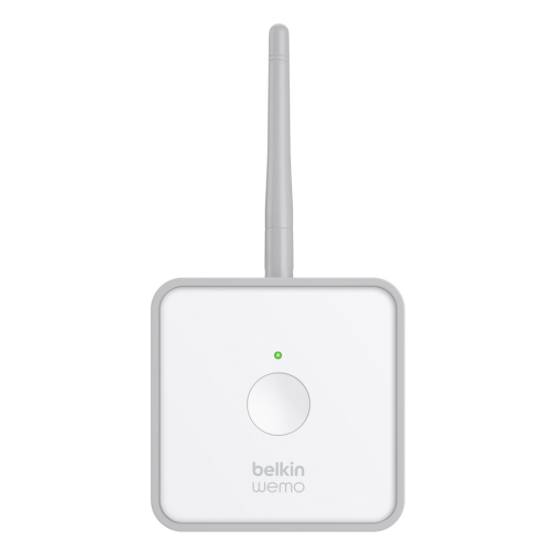

The entire thing relies on the WeMo Maker device. I’m a big fan of WeMo products, and have a few WeMo switches in my home already that perform a variety of uses depending on the month (such as giving me control of the Christmas lights on my house in December). The WeMo line of products is from Belkin, and they’re tried and true… they just work. The WeMo Maker (seen above) will run you $80, but keep in mind that a replacement garage door opener (of which I was in need of anyway) typically runs around $20 or so. The WeMo Maker will give you the ability to press a button on your phone and open or close the garage door wherever you may be, even via your data connection if your phone isn’t able to find a WiFi network to join.

Buy/Procure:

  1. The WeMo Maker kit – comes with a USB adapter to provide power.
  2. Two lengths of insulated wire – I used two 36″ lengths of 20-gauge speaker wire but you’ll want to measure the distance between the Maker’s two RELAY ports and the push button on your garage wall that opens/closes the garage door and cut to length as needed.

Tools Needed:

  1. Wire strippers
  2. Phillips screwdriver for WeMo Maker RELAY ports and possibly garage door button if it uses Phillip-head screws
  3. Flathead screwdriver if garage door button uses slot screws

DISCLAIMER: I make no guarantees about my documentation below. Try at you own risk. I’m not responsible for any damage you do to your garage door, your house, your neighbor’s house, or your marriage.

Step 1: Start by downloading the free WeMo app for your phone (Android and iOS supported) and follow the instructions that come with the WeMo Maker to get it connected to your home WiFi network. This shouldn’t take any longer than a few minutes… it’s very easy to do and involves first connecting your phone to the WeMo Maker’s WiFi network and then using the app to point the WeMo Maker to your home network name (SSID) and providing the password so it can then join your home network. You’ll also configure the switch by giving it a new name (mine is called “Ashley Garage”) and make certain you configure the Switch Type as MOMENTARY (see image below). For now, don’t mess with the Reset Options or the Sensor setting.

Momentary Setting

Step 2: Once the WeMo Maker is joined to your home network, take the device to the garage and find a free wall plug. Plug it in and use your phone’s app to test it. When you press the button for the WeMo Maker switch, you should hear the relay inside the Maker box click. It’s not wired up yet, so it can’t open or close anything yet. If the button on the WeMo app turns green and stays green, you’ve not configured the button for MOMENTARY — this is required because it simulates pressing and releasing the button. Use the Edit feature if this happens  and change the Switch Type setting to MOMENTARY and try again. The button on the WeMo app should turn green for a second or so, and then return to non-green status.

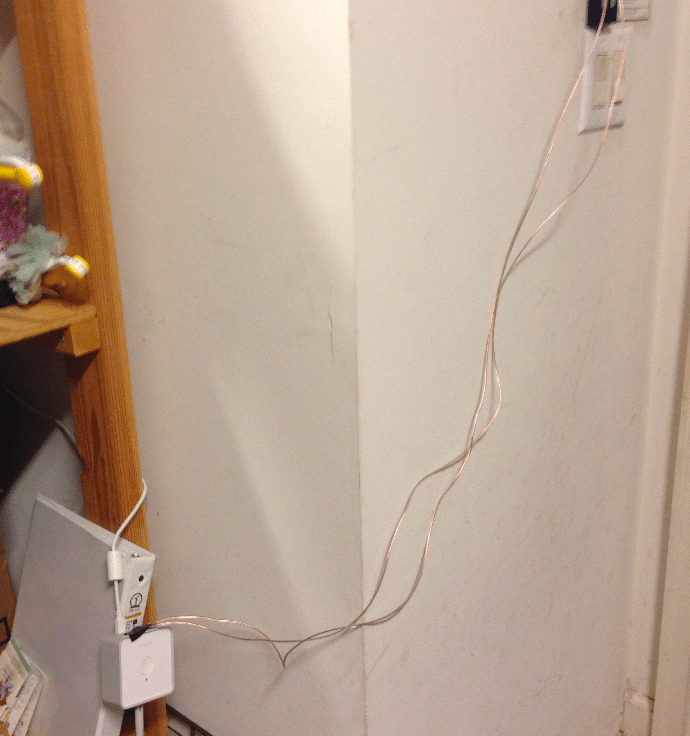

Step 3: You’ll need to cut two lengths of wire that will run from the two ports on the back of the WeMo Maker (labeled “RELAY”) to the garage door button. I gave myself some extra wire just to be safe — once I’m 100% satisfied, I’ll trim the wire down to a better length and buy some plastic runner from the hardware store to cover the wire and protect it (i.e. keep it from getting pulled or yanked on by the kids). Strip off about 1/2″ from each end of both wires. Let’s call one of these WIRE 1 and the other WIRE 2.

Note: You don’t have to turn off the power to the garage, but it’s also never a bad idea when working with wiring. Just remember to turn it back on at the breaker box should you choose to kill power to the garage.

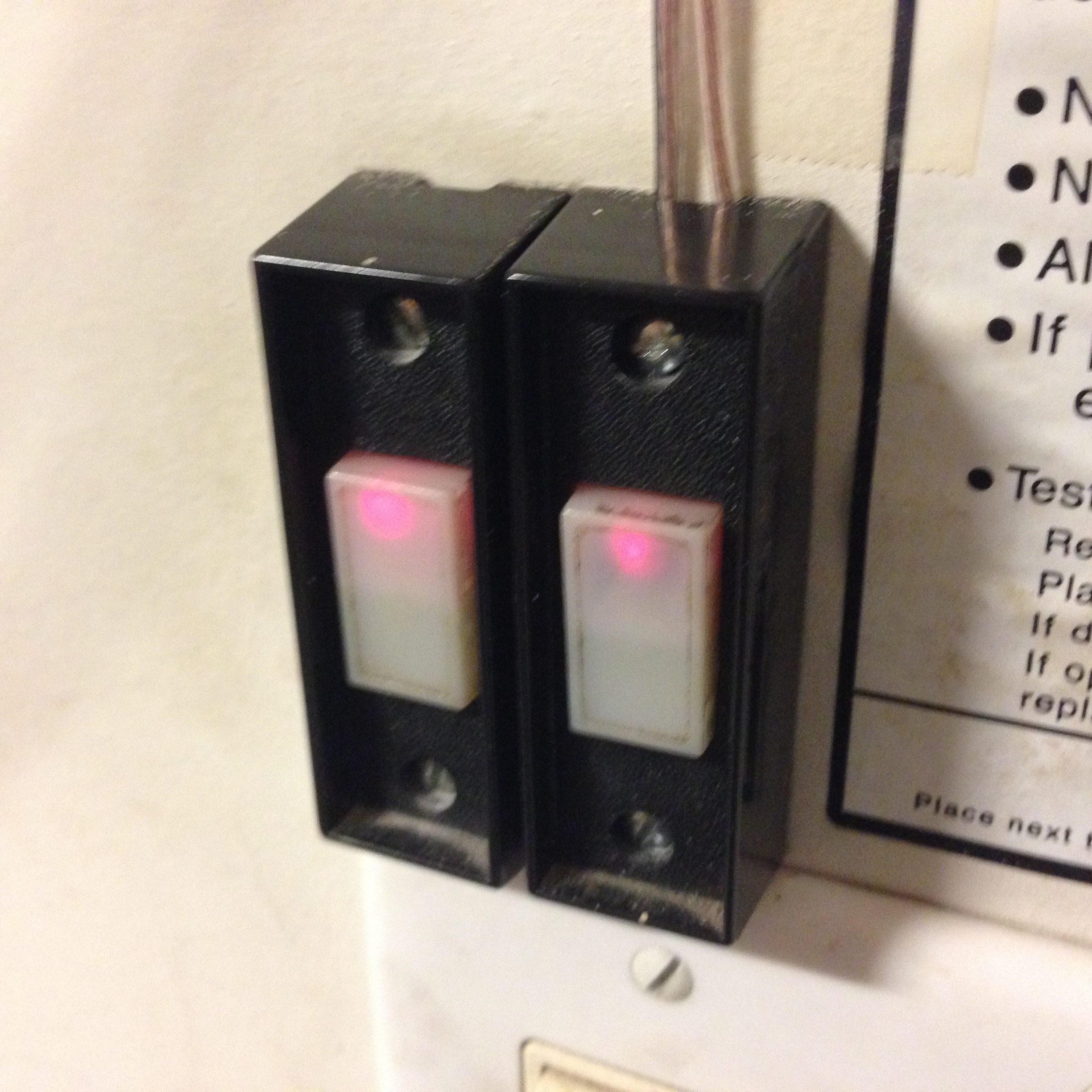

Use a screwdriver and unscrew the garage door button from the wall. Behind the button, you should see two screws, each holding down a wire. Unscrew just one of these and insert the stripped end of WIRE 1 (keeping the original thin wire in place) and then tighten down the screw again. Unscrew the screw holding down the other thin wire and insert one stripped end of WIRE 2 and tighten down with the original thin wire still in place. In the image below, you can see the original wires (the very thin wires – one blue, one white) and the two new wires (thicker) that I added. As far as I can tell, it doesn’t matter which of your new wires (WIRE 1 or WIRE 2) goes to which screw.

garage door button wiring

Carefully reattach the garage door button to the wall. My button has a small notch on both ends that lets the new wires exit out without cutting into them – you might have to use a file to create a small gap.

reattached

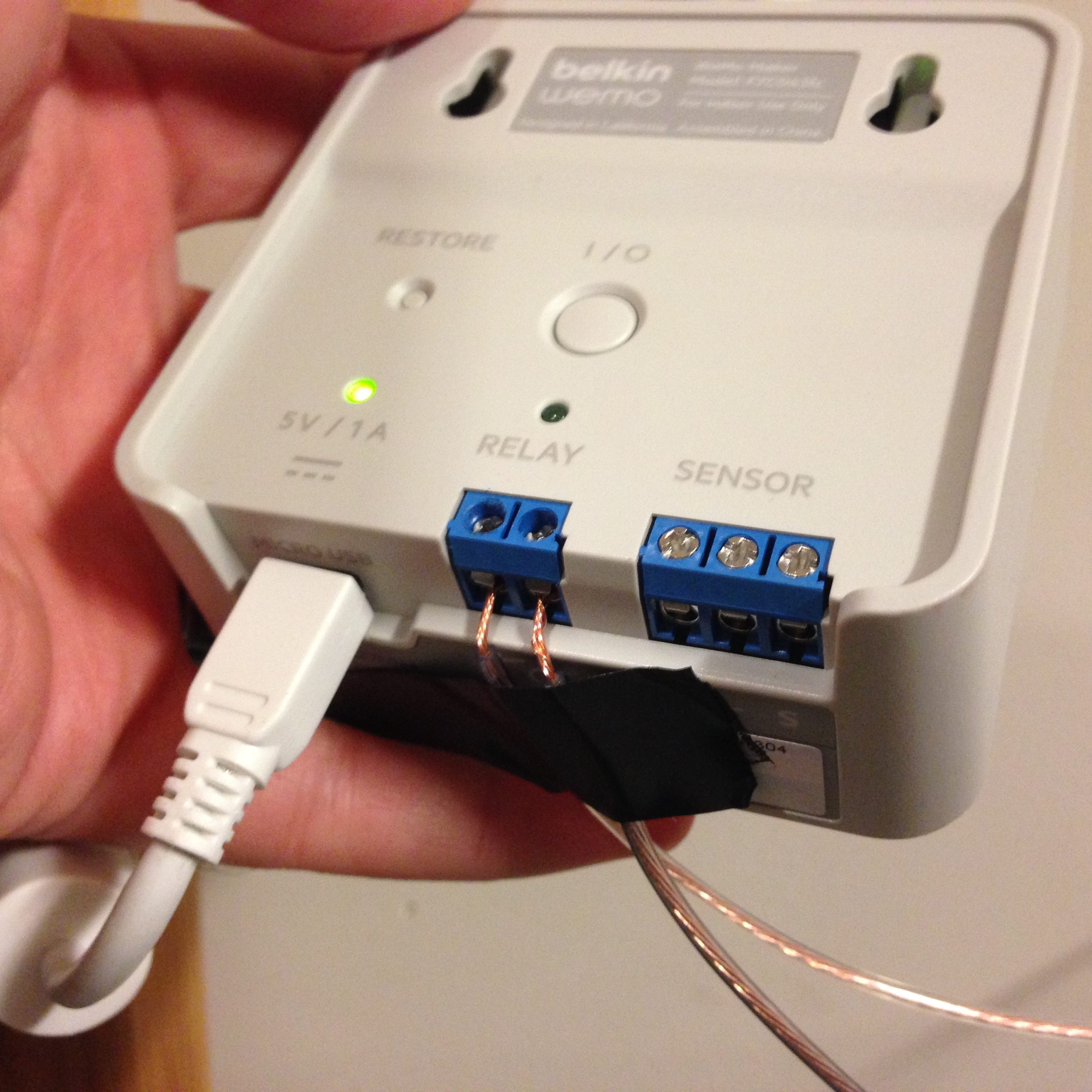

Step 4: Unplug the power to WeMo Maker temporarily and then use a small Phillips screwdriver to screw in the WIRE 1 and WIRE 2 free ends into the RELAY ports. There are two RELAY ports (they are labeled — see image below), one per wire. Insert one wire into the left RELAY port and then tighten down the screw. Insert the other wire into the right RELAY port and tighten down. Plug the Maker back into wall power and give it a minute to boot up and find your home WiFi network.

RELAY ports

Wiring completed

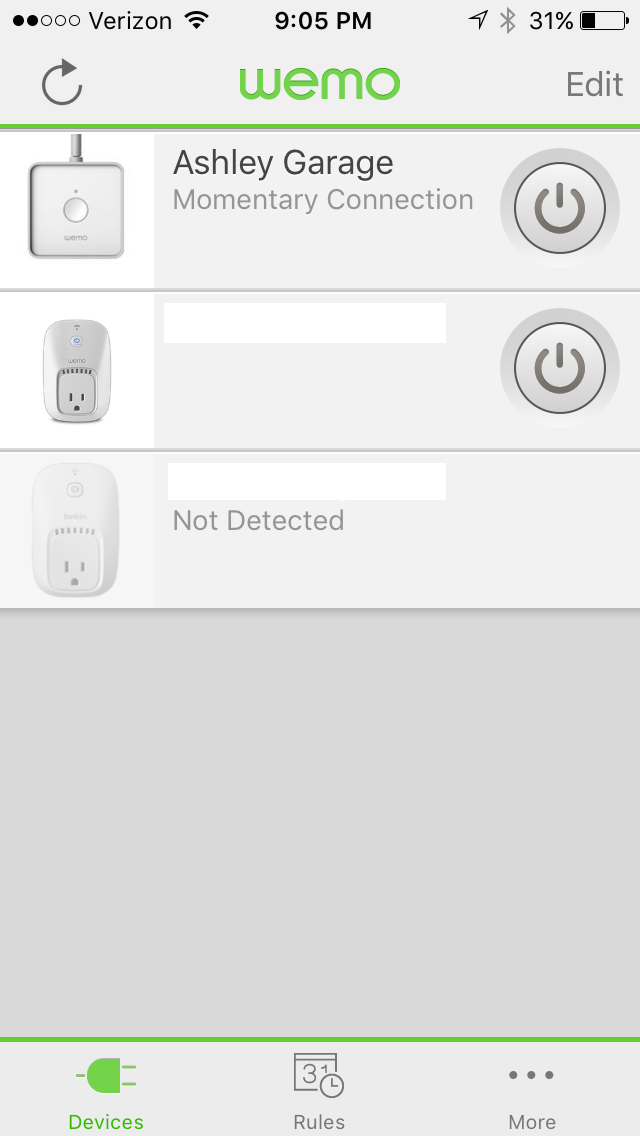

Step 5: Test it! Open up the WeMo app, find the button with the little picture of the WeMo Maker (see image below), and tap it. The button should turn green for about a second (and then go non-green) and the garage door should start opening.

Garage

A few notes/observations:

  1. I turned off my phone’s WiFi and tested it with my carrier’s data connection and it worked.
  2. I installed the app on my wife’s phone, too. I just texted my wife at her office and asked her to push the button. It worked. Cool. I like to do odd things like this to keep her on her toes during the day.
  3. My next step is to wire in a magnetic switch (that connects to the SENSOR ports (to the right of the RELAY ports) so I’ll be able to tell if my garage door is open or closed. A message will appear beneath the switch name (Ashley Garage) telling me if the sensor is active (garage closed) or inactive (garage open). If it’s open, a push of the button will close it – peace of mind! (Link to walkthrough here.)
  4. There’s a button on front of the WeMo Maker that you can push to activate garage. The garage door button also still works, as does the little garage door opener. The Maker doesn’t interfere with any of the other methods you have for opening/closing.
  5. The WeMo Maker works with IFTTT, as well as the IFTTT DO Button app that puts a big button on your phone’s screen (see image below) but I noticed the DO Button app has a 3-5 second lag. The WeMo app itself is almost instantaneous (but doesn’t look as cool, IMO, as that big green button). Your mileage may vary.
  6. BONUS IFTTT feature — I can create a recipe that sends me a text message or email (or both) when my garage door is opened. I believe there’s an option to specify a time (IF “after 10pm” THEN “close garage”) and I’ve heard there may be a way to even use geolocation (IF “within 1 mile of home” THEN “open garage”) — will look into that.
  7. Yes, there are PLENTY of online tutorials for doing this same thing with an Arduino or Raspberry Pi but they can be overly-complicated, especially for those not comfortable working with electronics or programming. I like the WeMo Maker because (a) the app already exists… no coding on my part required and (b) I like the self-contained enclosure that’s wall-mountable and keeps everything protected.

Ashley Garage DO app

Honestly… anyone who can hook up a DVD player and join a mobile device to a WiFi network should be able to do this. It’s NOT hard. I did it in less than 15 minutes and just finding my wire strippers took about five of those minutes. Give it a shot (but don’t wait too long — I’ve seen the Maker go in and out of stock). If you have any concerns or questions, you’ll also find a lot of WeMo fans on the WeMo Community forum who can answer questions.

It’s the little things in life that often bring the biggest smiles, right? I’ve wanted to have access to opening/closing my garage with my phone for a long time now, mainly for convenience. Once I add in the magnetic sensors to tell me if it’s open or closed, I’ll also be able to stop the “Did I leave the garage open?” worries. I’ll try to do a follow-up post after I get the magnetic switch added in… good luck if you give this a try!

Note: I purchased the WeMo Maker from Amazon.com.
